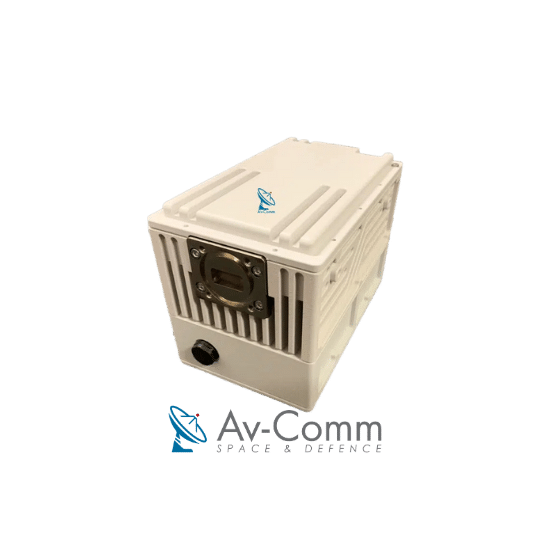

Amkom AMKL40 40W Ku Low Band 12.75-13.25GHz BUC
$14,653.79 AUD
The Amkom AMKL40 40W Ku Low Band 12.75-13.25GHz BUC series supports frequency operations in the lower part of Ku Band 12.75-13.25GHz with up to 20W of output power.
Description
Description
The Amkom AMKL40 40W Ku Low Band 12.75-13.25GHz BUC series supports frequency operations in the lower part of Ku Band 12.75-13.25GHz with up to 20W of output power. The Amkom AMKL40 40W Ku Low Band 12.75-13.25GHz BUC is the next generation of Amkom’s feed-horn & boom-arm mountable BUCs in the industry, weighing-in only at 1.6kg and working at high temperatures up to 60°C.
Key Features
| Hyper-Light Package Design Only 3.1lbs (1.4kg) |
| Extreme Stability, Reliability and Performance |
| Built-in HPA Overdrive Circuit Protection |
| High Temperature Reliability- up to + 60°C |
| Built-in Anti Vibration Operation |
| Built-in Optimised Linearisation |
| Built-in Ultra Receive Band Reject Filter |
| Extreme GaAs + GaN Linearity and Efficiency |
| Field Replaceable IP68 Rated Extra Long-Life Fans |
| Fully Assembled and Rigorously Tested in the USA |
| Operating IF frequency: 950 to 1450 MHz |
| Rated Output Power | Linear Power SR @ -26dBc: 40W 46dBm PSAT (min) | 32W 45 dBm PLIN (min) |
| Prime Power via IF or MS Connector: + 22 – 55 VDC 200W PSAT & 155W @ P-LINEAR |
Additional information
Additional information
| Weight | 1.4 kg |
|---|---|
| Dimensions | 15.2 × 9.4 × 7.4 cm |
| Wattage | |
| Frequency Band | |
| Connection Types | |
| SKU | BAMKL40 |
