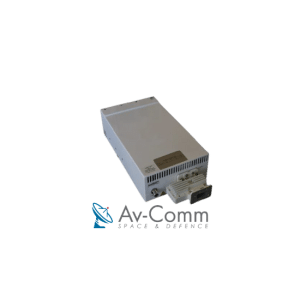

Amkom ALKU50NA 50W Ku Band BUC

Description

The Amkom ALKU50NA 50W Ku-Band BUC series supports Extended (13.75 – 14.5GHz) and Standard (14.0 – 14.5GHz) 50W Ku-Band AC power integrated BUCs. The Amkom ALKU50NA 50W Ku-Band BUC are the next generation of Amkoms’s feed-horn & boom-arm mountable BUC, weighing-in only at 2.25kg and working in high temperatures up to 70°C.
Amkom has chosen the best of both worlds to implement the most mature, proven efficient and reliable GaAs + GaN High Power Amplifiers with internal overdrive protection and precise linearization technique. Amkom’s BUCs weatherproof and robust Hyper-Light package is constructed with the most advanced mechanical precision engineering in mind. Amkom use only the toughest aerospace grade aluminium based metal with the most efficient heat disposal properties. Each BUC is vigorously tested at Amkom’s California facility against a rigorous acceptance testing procedure (ATP).
Amkom ALKU50NA 50W Ku Band BUC Features:

• Hyper-Light Package Design Only 2.5kg
• Extreme Stability, Reliability and Performance
• Built-in HPA Overdrive Circuit Protection
• High Temperature Reliability- up to + 70°C
• Built-in Anti Vibration Operation
• Built-in Optimized Linearization
• Built-in Ultra Receive Band Reject Filter
• Extreme GaAs + GaN Linearity and Efficiency
• Field Replaceable IP68 Rated Extra Long Life Fans
• Integrated AC Power Supply

Amkom’s Design Group Inc. was established in 2016 and is based in California USA with market focus on SATCOM and VSAT markets. Amkom’s BUC and SSPA designs include the best technical elements of both GaN and GaAs architectures to deliver mature, reliable, and efficient BUCs and SSPA/Bs with added internal overdrive protection. Amkom’s products are achieving world class results with exceptional stability, reliability, linearity and efficiency.
