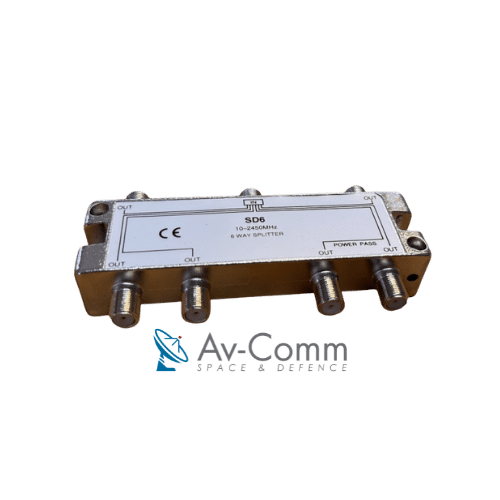

6 Way Splitter 10-2500MHz
$38.16 AUD
This 6 Way Splitter will carry signals from 10-2500MHz. Ideally suited to terrestrial and satellite applications, this splitter is fitted with F type connections.
5 in stock
Description
Description
This 6 Way Splitter will carry signals from 10-2500MHz. Ideally suited to terrestrial and satellite applications, this splitter is fitted with F type connections.
Connect your input signal to the input side of the splitter and the signal will be split on to the six output ports of the splitter. Typically you can expect to have 9dB of loss when using a 6 way splitter. This splitter can also be used in reverse to combine signals from six sources to a single cable. One port is power passing.
Key Features
| Catalogue Number | Frequency Range | X1554 (6 way) |
| Insertion Loss | 5-47MHz | 12.0dB |
| 47-860MHz | 12.5 dB | |
| 860-2300MHz | 17.0 dB | |
| 2300-2500MHz | 17.5 dB | |
| Return Loss | 5-47MHz | 8 dB |
| 47-860MHz | 8 dB | |
| 860-2300MHz | 10 dB | |
| 2300-2500MHz | 10.0 dB | |
| Port Isolation | 5-47MHz | 20.0 dB |
| 47-860MHz | 18.0 dB | |
| 860-2300MHz | 20.0 dB | |
| 2300-2500MHz | 20.0 dB |
Additional information
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 11 × 3.5 × 6 cm |
| SKU | X1554 |
