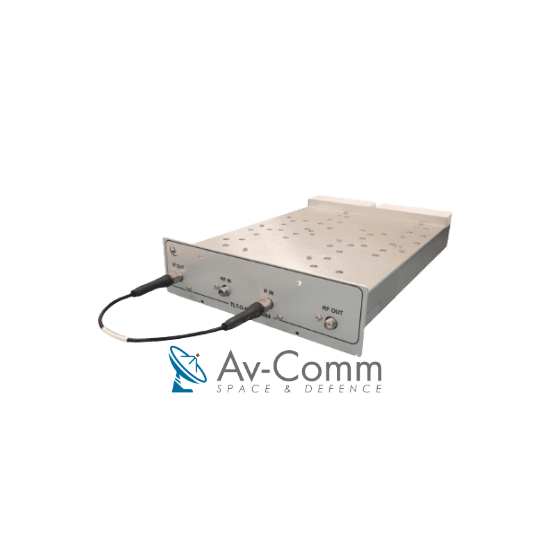

ETL Test Loop Translators (TLT) TLT-D-C2C1-1002-S5S5
ETL Test Loop Translators offer efficient testing and alignment by simulating satellite links, enabling real-time performance monitoring across multiple frequency bands.
Description
Description
ETL Test Loop Translators offer efficient testing and alignment by simulating satellite links, enabling real-time performance monitoring across multiple frequency bands.
- S, C, X, K, Ku, and Ka-Band frequency ranges
- Multiple modules per chassis
- Block or Agile variants
- Hot swap
- Variable attenuation control
- Optional modules are available for L-Band inputs or outputs.
- Outdoor Chassis housing option
- Secure protocols with SNMPv3 and HTTPS
- Local & Remote control & monitoring via RJ45 Ethernet port and web browser interface
Key Features
| Parameter | Value |
| Frequency Band | C-Band |
| Operating Frequency Range |
Input: 5.725—6.725GHz Output: 3.4—4.4GHz |
| External Reference | Input Freq. 10 MHz Auto detection (External reference optional) |
| External Reference Level | +3dBm ±3dB |
| LO Frequency Control | ± 250MHz |
| Internal Reference Stability | ±0.05ppm over 0 to 50°C |
| Maximum Input Power Level | 0dBm (Operational) |
| Absolute max Input Power | + 20 dBm (No damage) |
| Conversion Gain | -0 ± 3.0 dB |
| RF Connector | SMA Female |
| Impedance | 50 ohms |
| Attenuation Control Range | 0 to 60dB |
| Attenuation Control Steps | 0.25dB ±0.20 Over full operating band |
Additional information
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 55 × 59 × 5 cm |
| SKU | ETLGTLTC2C1 |
