ETL SRY-G1S-TS6-161

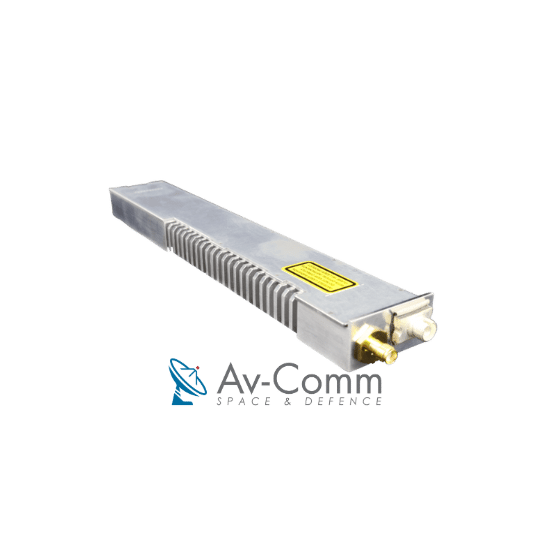

ETL StingRay S-band Transmit and Receive RF Over Fibre modules to fit Genus 1U chassis. The transmit module can provide LNB power 13/18VDC, 22kHz tone up to 500 mA.
Description
Description
ETL StingRay S-band Transmit and Receive RF Over Fibre modules to fit Genus 1U chassis. The transmit module can provide LNB power 13/18VDC, 22kHz tone up to 500 mA. When fitted with a 10 MHz distributing module the TX/RX module can inject an external or internal 10 MHz tone onto the L-band feed.
- AGC, MGC and Fixed Gain modes
- 13/18 V and 22 kHz tone LNB control
- Hot swap
- 50 and 75 ohm
- Superior RF specifications and Isolation
- Redundancy options from 1+1 up to 4+2 redundancy
- Options for dual modules or RF monitor ports
- Secure protocols with SNMPv3 and HTTPS
- Local & Remote control & monitoring via RJ45 Ethernet port and web browser interface
- 3-year warranty as standard
Key Features
| Parameter | Value |
| Frequency Range | 500-3150 MHz |
| Flatness (dB) | 850 – 2150MHz: ±1.5 dB, Fixed gain mode 2150 – 2450MHz: ±2.0 dB, Fixed gain mode Any 36MHz: ±0.25 dB, Fixed gain mode |
| Return Loss (db) |
50 ohm SMA 18 dB typ., 14 dB min 50 ohm BNC 18 dB typ., 14 dB min 75ohm BNC 14 dB typ., 10 dB min 75 ohm F-type 14 dB typ., 10 dB min |
| Gain Setting Modes | Manual Gain Control (MGC), Automatic Gain Control (AGC), Fixed Gain (FG) |
| Manual Gain Range | 60 dB (in 0.5 dB steps) |
| Group Delay Variation | 2ns over full band. 1ns over any 36MHz |
| RF Signal Range | Input: -70 to -10 dBm (total power) Operational i/p range Output: -70 to -10 dBm (total power) o/p range available under all i/p conditions |
| Max RF Input | +16 dBm total power. Damage level, NOT operational |
| 10MHz Level at Output | -10 to +10 dBm. User settable level via the chassis. Accuracy ±2 dB |
| 10MHz Isolation | -40 dB, between adjacent modules in same chassis |
| Laser Type | DFB. Optical isolator for improved performance |
| Optical Wavelength | 1310 ± 10 nm |
| Optical Power | Output: 4.5 ±1 dBm. |
| Optical Connectors | FC/APC , SC/APC Single mode fibre. Use angle polish connectors only |
| Power Consumption | 15W Typical. With 18V 500 mA LNB Power |
| LNB Power | 18/13V ±5 %, 500 mA max |
| Module Swap | Hot swap |
| MTBF | >200,000 hours |
Additional information
Additional information
| Weight | .03 kg |
|---|---|
| Dimensions | 2 × 26 × 4 cm |
| SKU | ETLSRYG1STS161 |
