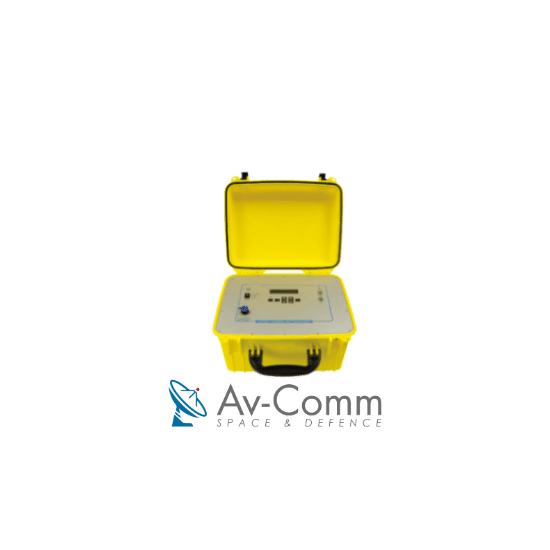

ETL Ruggedised Test Loop Translators
ETL’s Ruggedised Bench TLT offer multi-band support, modular design, secure remote monitoring, and are built for challenging environments with a rechargeable b
Description
Description
ETL’s Ruggedised Bench TLT offer multi-band support, modular design, secure remote monitoring, and are built for challenging environments with a rechargeable battery.
- X, Ku, DBS & Ka-Band operating frequency options
- Weatherised portable instrument
- Variable gain control
- Local (base unit) or remote control
- Linear and circular polarisation options
- Base unit & transponder included
- AC supply
Key Features
| Parameter | Value |
| LO Frequency Steps | 25MHz |
| Maximum Input Level | +10dBm |
| Conversion Gain | -35dB nom |
| Conversion Gain Flatness | +/-2dB typ. +/-0.5dB/40MHz max |
| Attenuation Range | 30dB Min |
| Attenuation Control | 0.25dB Steps |
| Impedance | 50 ohms |
| Input VSWR | 1.8:1 typical |
| Output VSWR | 1.8:1 typical |
| Signal Related Spurious | -25dBc typical |
| LO Related Spurious & Harmonics | -30dBm typical |
| Non-Signal or LO Related Spurious | -60dBm minimum |
| Input Power Connector | Bulgin Buccaneer 400 Series |
| Input Power | 100-240V, 50-60Hz |
| Lock Alarm | LED, Front Panel & Ethernet |
| Input Connector | 2.92 mm female Ka-band, SMA female Ku-band |
| Output Connector | SMA female |
| Reference Input Connector | BNC Female |
| Ethernet Connector | RJ45 |
| Recharging Power Connector | 3 Pin XLR |
Additional information
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 55 × 59 × 5 cm |
| SKU | ETLRBTLT |
