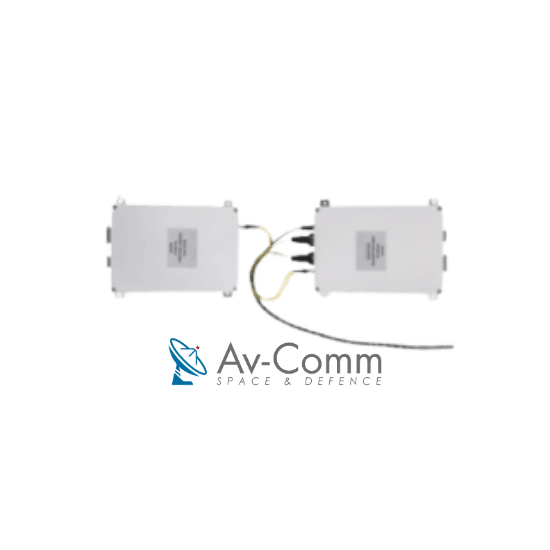

ETL Multi-path Satellite Simulator System
ETL Multi Channel system allows dual communication for extended testing across S, C, X, Ku, K, and Ka-bands, with fixed or portable setups and Ethernet/local control.
Description
Description
ETL Multi Channel system allows dual communication for extended testing across S, C, X, Ku, K, and Ka-bands, with fixed or portable setups and Ethernet/local control.
- Simultaneously talks to two sets of ground equipment, enabling the user to run extensive and prolonged tests without the need to go ‘live’ on a satellite.
- S, C, X, Ku, K, and Ka frequency ranges
- Fixed installation or portable
- Ethernet and local control options
Key Features
| Parameter | Value |
| LO Frequency Steps | 25MHz |
| Maximum Input Level | +10dBm |
| Conversion Gain | -35dB nom. (see options) |
| Conversion Gain Flatness | +/-2dB typ. |
| Attenuation Range | 60dB min. (see options) |
| Attenuation Control | 1.0dB Steps |
| Impedance | 50 ohms |
| Input VSWR | 1.8:1 typ. (see options) |
| Output VSWR | 1.8:1 typ. (see options) |
| Signal Related Spurious | -25dBc typ |
| LO Related Spurious & Harmonics | -30dBm typ. |
| Non Signal or LO Related Spurious | -60dBc min. |
| Input Power | 80-240V, 50-60Hz |
| Input Power Connector | IEC with Fuse |
Additional information
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 13 × 26 × 6 cm |
| SKU | ETLMSSSS |
